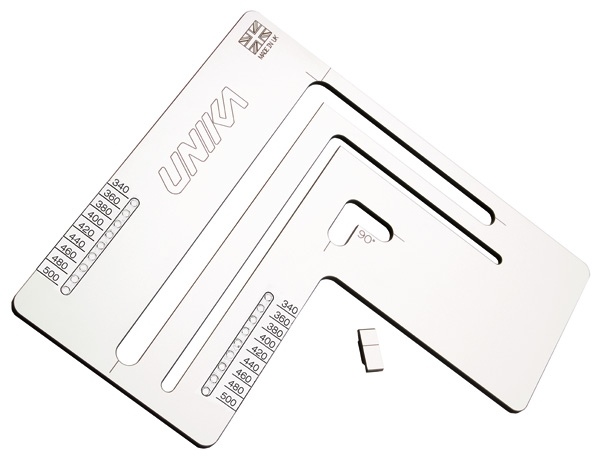

Belfast/Butler Sink Jig

Belfast/butler sink jig will rout recesses into worktops for single or double Belfast sinks

It enables you to accurately rout a drip channel groove on the underside of the worktop and around the outside of the sink recess (5-6mm from the worktop edge)
It is suitable for ceramic sinks up to 1050mm long and from 440 – 515mm wide.
For worktop recess use with a 12.7mm Tungsten Carbide Router Cutter and 30mm guide bush.
For Drip Channel groove use with a 5 or 6mm diameter Tungsten carbide round nose cutter and 16mm guide bush.
