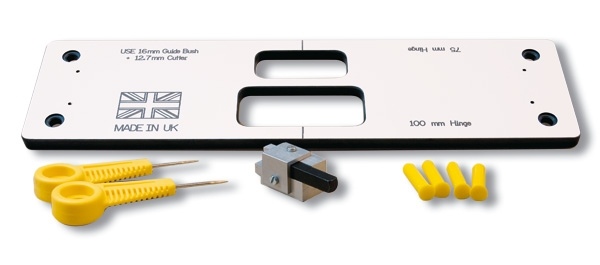

Compact Hinge Jig

Will recess 76mm and 102mm hinges in doors and door frames

Uses 12.7mm cutter and 16mm guide bush
The recess will be 20mm for a 76mm hinge and 30mm for 102mm hinge.
The jig will recess hinges to a minimum distance of 230mm (in accordance with BS EN 1935) from the top and bottom edge of the door.
Small piece jig means it is easy to store and transport to jobs.
Has adjustable set up for door and frame. This means the distance between hinges can be altered.
Incorporates bradawl pin fixing for extra stability
