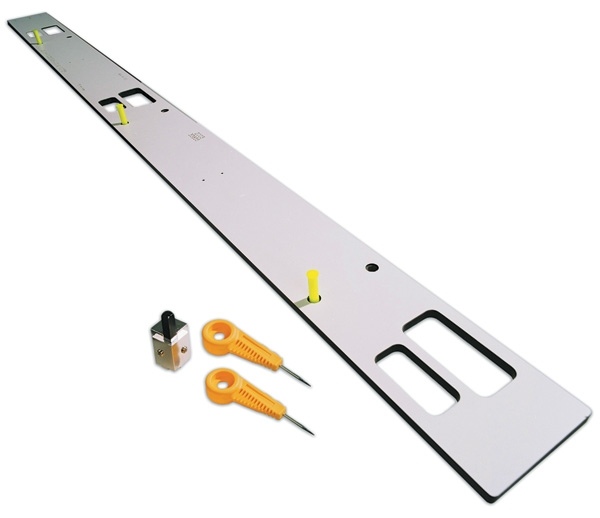

Hinge Jig

Will recess 75mm and 100mm hinges in doors and door frames

Uses 12.7mm cutter and 16mm guide bush
The recess will be 20mm for a 75mm hinge and 30mm for 100mm hinge.
It will recess hinges to a minimum distance of 205mm (in accordance with BS EN 1935) form the top and bottom edge of the door.
Single piece jig ensures level operating, quick set up and no pieces will get lost.
One set up for door and frame which means there’s no need to adjust for repeated doors.
Incorporates bradawl pin fixings for extra stability.
